Ruijie Reyee RG-RAP62-OD, AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point

Ruijie Reyee RG-RAP62-OD, AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point - Image 2

Ruijie Reyee RG-RAP62-OD, AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point - Image 3

Ruijie Reyee RG-RAP62-OD, AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point - Image 4

Ruijie Reyee RG-RAP62-OD, AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point - Image 5

Ruijie Reyee RG-RAP62-OD, AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point - Image 6

Ruijie Reyee RG-RAP62-OD, AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point

$416.90 inc GST

(0 customer reviews)

RG-RAP62-OD is an outdoor wireless access point for business Wi-Fi coverage in exposed environments.

Outdoor AP design supports wider Wi-Fi coverage for business sites.
Suitable for outdoor corridors, entrances, warehouses and public coverage areas.
Weather-resistant deployment profile supports exposed installation planning.
Cloud management helps simplify setup, monitoring and maintenance.
PoE deployment supports cleaner cabling for outdoor access point installation.

Availability: 51 in stock

Add To Wishlist

SKU: RG-RAP62-OD Categories: Reyee Access Points, Reyee Outdoor Access Point, Wireless Access Points Tags: Cloud Managed, Outdoor Access Point, Reyee Mesh, Wi-Fi 6

Loading...

Key Specification

Product Type	Outdoor wireless access point	Wireless Standard	Wi-Fi 6 / AX3000
Radio Design	Dual-radio, 4 spatial streams; 2.4 GHz: 2×2 MU-MIMO; 5 GHz: 2×2 MU-MIMO	Maximum Wireless Data Rate	2974 Mbps
5 GHz Wireless Data Rate	2401 Mbps	2.4 GHz Wireless Data Rate	573 Mbps
Antenna	5 GHz: 1 built-in omnidirectional antenna; integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas	Network Port	1 x 10/100/1000BASE-T
Power Supply	PoE / PoE+	Maximum Power Consumption	16 W
Product Dimensions	70 mm x 35 mm x 200 mm (2.76 in. x 1.38 in. x 7.87 in.), excluding mounting bracket	Weight	<= 0.4 kg (0.88 lbs.), without packaging materials
Operating Temperature	-30 deg C to +65 deg C (-22 deg F to +149 deg F)	IP Rating	IP65
Mounting Options	Wall / pole	Application	Outdoor and indoor-outdoor wireless coverage

Feature Images

Official product promotional feature images.

RG-RAP62-OD promotional feature image 1

RG-RAP62-OD promotional feature image 2

Product Video

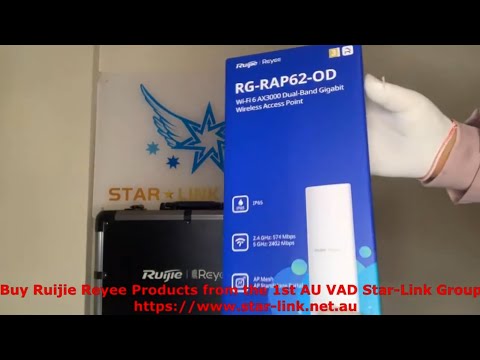

Open box video for Ruijie Reyee RG-RAP62-OD, AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point.

RG-RAP62-OD Open Box Video

Product Resources

Product DatasheetOfficial product datasheet and technical documentation.

Installation GuideOfficial installation documents for setup and deployment.

User GuideOfficial user guide and configuration reference.

Deployment Support

Optional setup guidance and after-sales support available from Star-Link Group.

Deployment Planning

Clear product positioning helps installers choose the right device for each site.

Resource Ready

Official documents are linked for setup, firmware and maintenance reference.

Project Support

Star-Link Group can help with product selection and deployment planning.

Available project support from Star-Link Group:

Free pre-configuration for your first project, and for projects involving five or more devices.
Free consultation and after-sales support.

Note: Setup guidance and pre-configuration service are provided by Star-Link Group and are not built-in product features. Please email support@star-link.net.au if you would like to discuss your setup.

Weight	1 kg
Dimensions	20 × 7 × 3.5 cm
Radio	Dual-stream dual-band
Protocol	Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands	802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz, 802.11b/g/n: 2.4G ~ 2.4835GHz
Antenna	Array antennas (2.4G: 2dBi, 5G: 2dBi)
Spatial Streams	2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput	1.267Gbp per AP, Up to 400Mbps at 2.4G, Up to 867Mbps at 5G
Modulation	DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps, MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM, Modulation OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
Receiver Sensitivity	11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps), 11ac HT20: -83dBm (MCS0), -57dBm (MCS9), 11ac HT40: -79dBm (MCS0), -57dBm (MCS9), 11ac HT80: -76dBm (MCS0), -51dBm (MCS9), 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps), 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@ MCS15
Maximum Transmit Power	2.4~2.4835GHz: ≤20dBm (EIRP), 5.150~5.350GHz: ≤20dBm (EIRP), 5.725~5.850GHz: ≤20dBm (EIRP)
Adjustable Power	1dBm
Dimensions	194mm×194mm×35mm (excluding mounting kits)
Weight	0.45kg (excluding mounting kits)
Service Ports	2 10/100Base-T Ethernet ports, PoE/LAN1 port supports PoE, Service Ports 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE
Management Port	NA
LED Indicator	Single indicator (green light)
Power Supply	Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE
Power Consumption	≤ 12.95W
Environment	Operating humidity: 5%~95% (non-condensing), Operating temperature: 0°C~40°C, Storage humidity: 5%~95% (non-condensing), Storage temperature: -40°C~70°C
Installation	Wall-mount, ceiling-mount
Safety Standard	GB4943, IEC 60950-1
EMC Standard	GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
Vibration Standard	IEC61373
Radio Standard	SRRC certification, EN300 328, EN301 893
MTBF	>400000H
Operating Mode	AP mode and routing mode
WLAN	Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID, Maximum number of clients: 110, Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz), SSID-based and radio-based STA limit, Support Layer 2 user isolation, Support SSID hiding, Up to 8 SSIDs
Roaming	Support Layer 2 and Layer 3 roaming
Security	Support PSK authentication, Support static blacklist and whitelist, Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing	Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance	Support local management with web, Support local or remote management with Ruijie Cloud app, Support remote management with Ruijie Cloud platform, Support unified networking of all network equipment
Platform management features	Automatic RF adjustment via the platform, Unified configuration via the platform, Unified monitoring via the platform
