Key Specification
| Product Type | Ceiling AP | Radio design | Dual-radio 4 spatial streams ● 2.4 GHz: 2 x 2, MU-MIMO ● 5 GHz: 2 x 2, MU-MIMO |
|---|---|---|---|
| Maximum wireless data rate | 1774 Mbps | 6 GHz wireless data rate | No |
| 5 GHz wireless data rate | 1201 Mbps | 2.4 GHz wireless data rate | 573 Mbps |
| Antenna | 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas | Product dimensions (W x D x H) | 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket) |
| Color | White | Weight | ≤ 0.55 kg (1.21 lbs.) (without packaging materials) |
| Number of 10/100/1000BASE-T ports | 2 | Power supply | ● DC power adapter ● PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred. |
| Local power supply | Yes, one DC power connector (12 V, 1.5 A) | Dimensions of the DC connector | Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10 mm (0.39 in.) |
| PoE budget | No | Maximum power consumption | 15.5 W |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Mounting options | Ceiling/Wall |
| IP rating | IP41 | Maximum number of associated wireless clients | 64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled) |
| Maximum number of devices that can be managed | 300 | IPv6 | Yes |
Feature Images
Official product promotional feature images.
Product Video

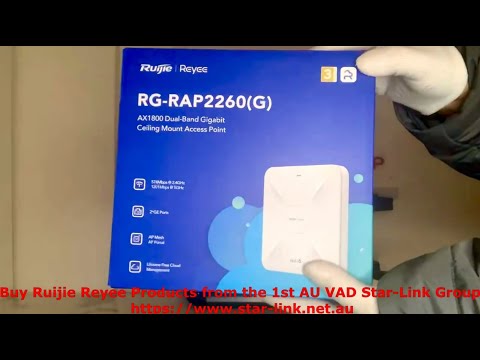

Open box video for Ruijie Reyee RG-RAP2260(G) Ceiling Access Point, Wi-Fi6,1775Mbps.
Product Resources
Deployment Support
Optional setup guidance and after-sales support available from Star-Link Group.
Deployment Planning
Clear product positioning helps installers choose the right device for each site.
Resource Ready
Official documents are linked for setup, firmware and maintenance reference.
Project Support
Star-Link Group can help with product selection and deployment planning.
Free pre-configuration for your first project, and for projects involving five or more devices.
Free consultation and after-sales support.
Note: Setup guidance and pre-configuration service are provided by Star-Link Group and are not built-in product features. Please email support@star-link.net.au if you would like to discuss your setup.
