Ruijie Reyee RG-EST450G, 15 dBi, with 120 deg Built-in Antenna

Ruijie Reyee RG-EST450G, 15 dBi, with 120 deg Built-in Antenna - Image 2

Ruijie Reyee RG-EST450G, 15 dBi, with 120 deg Built-in Antenna - Image 3

Ruijie Reyee RG-EST450G, 15 dBi, with 120 deg Built-in Antenna - Image 4

Ruijie Reyee RG-EST450G, 15 dBi, with 120 deg Built-in Antenna - Image 5

Ruijie Reyee RG-EST450G, 15 dBi, with 120 deg Built-in Antenna - Image 6

Ruijie Reyee RG-EST450G, 15 dBi, with 120 deg Built-in Antenna

$281.55 inc GST

(0 customer reviews)

Ruijie Reyee RG-EST450G is an 802.11ac outdoor wireless bridge designed for wide-angle PTMP surveillance and site-to-site backhaul.

120 deg horizontal and 13 deg vertical built-in antenna.
3 x GE ports for flexible outdoor bridge deployment.
Supports 12 V DC, Passive PoE and 802.3af/at power input.
One-touch pairing for PTMP mode.
TDMA and SON support for stable bridge networking.

Availability: 22 in stock

Add To Wishlist

SKU: RG-EST450G Category: Reyee Wireless Bridge Tags: 3x GE Port, 5KM, Cloud Managed, Wi-Fi 5; Wireless Bridge

Loading...

Key Specification

Model	RG-EST450G	Product Category	Outdoor wireless bridge / PTMP station
Wireless Standard	802.11ac wireless bridge	Wireless Link Speed	Up to 867 Mbps
Antenna	15 dBi built-in antenna	Antenna Orientation	H: 120 deg, V: 13 deg
Network Ports	3 x GE ports	Power Supply	12 V DC, Passive PoE, 802.3af/at
Radio Design	Dual-radio, 3 spatial streams; 2.4 GHz 1 x 1 SISO and 5 GHz 2 x 2 MIMO	Channel Width	2.4 GHz: Auto/20/40 MHz; 5 GHz: Auto/20/40/80 MHz
Bridge Functions	One-touch PTMP pairing, TDMA and SON support	Bridge Speed Test	Supported
Typical Throughput	200 Mbps / 1 km, 130 Mbps / 3 km, 80 Mbps / 5 km (HT40)	Application	Street, building, campus, farm, factory and surveillance backhaul
Dimensions	124 mm x 48 mm x 355 mm (excluding mounting bracket)	IP Rating	IP55
Operating Temperature	-30 deg C to +65 deg C (-22 deg F to +149 deg F)	Operating Humidity	5% RH to 95% RH, non-condensing
MTBF	400,000 hours (about 45 years)	Management	Ruijie Reyee Cloud management and remote configuration
Cloud Features	SON, AI heatmap, remote restart through Ruijie Reyee App	Network Management	SNMPv1, SNMPv2c and SNMPv3 supported
Official Resources	Product datasheet, installation guide, configuration guide and compliance document available from Reyee/Ruijie	Warranty	3 years

Feature Images

Official product promotional feature images.

RG-EST450G feature image 1

RG-EST450G feature image 2

Product Video

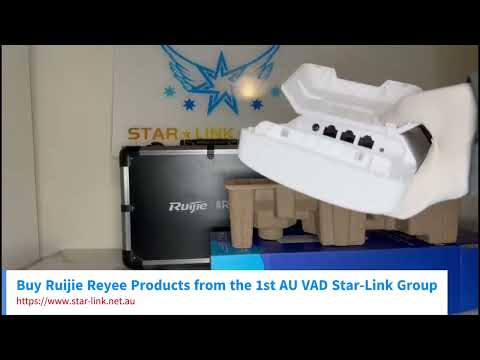

Open box video for Ruijie Reyee RG-EST450G, 15 dBi, with 120 deg Built-in Antenna.

RG-EST450G Open Box Video

Deployment Support

Optional setup guidance and after-sales support available from Star-Link Group.

Cloud Managed

Suitable for business networking projects where easier deployment and remote management are important.

Project Ready

Prepared for installers, integrators and trade customers comparing hardware across network projects.

Resource Ready

Official documents are linked for setup, firmware and maintenance reference.

Available project support from Star-Link Group:

Free pre-configuration for your first project, and for projects involving five or more devices. Free consultation and after-sales support.

Note: Setup guidance and pre-configuration service are provided by Star-Link Group and are not built-in product features. Please email support@star-link.net.au if you would like to discuss your setup.

Weight	1.61 kg
Dimensions	42 × 19 × 12 cm
Radio	Dual-stream dual-band
Protocol	Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands	802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz, 802.11b/g/n: 2.4G ~ 2.4835GHz
Antenna	Array antennas (2.4G: 2dBi, 5G: 2dBi)
Spatial Streams	2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput	1.267Gbp per AP, Up to 400Mbps at 2.4G, Up to 867Mbps at 5G
Modulation	DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps, MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM, Modulation OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
Receiver Sensitivity	11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps), 11ac HT20: -83dBm (MCS0), -57dBm (MCS9), 11ac HT40: -79dBm (MCS0), -57dBm (MCS9), 11ac HT80: -76dBm (MCS0), -51dBm (MCS9), 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps), 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@ MCS15
Maximum Transmit Power	2.4~2.4835GHz: ≤20dBm (EIRP), 5.150~5.350GHz: ≤20dBm (EIRP), 5.725~5.850GHz: ≤20dBm (EIRP)
Adjustable Power	1dBm
Dimensions	194mm×194mm×35mm (excluding mounting kits)
Weight	0.45kg (excluding mounting kits)
Service Ports	2 10/100Base-T Ethernet ports, PoE/LAN1 port supports PoE, Service Ports 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE
Management Port	NA
LED Indicator	Single indicator (green light)
Power Supply	Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE
Power Consumption	≤ 12.95W
Environment	Operating humidity: 5%~95% (non-condensing), Operating temperature: 0°C~40°C, Storage humidity: 5%~95% (non-condensing), Storage temperature: -40°C~70°C
Installation	Wall-mount, ceiling-mount
Safety Standard	GB4943, IEC 60950-1
EMC Standard	GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
Vibration Standard	IEC61373
Radio Standard	SRRC certification, EN300 328, EN301 893
MTBF	>400000H
Operating Mode	AP mode and routing mode
WLAN	Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID, Maximum number of clients: 110, Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz), SSID-based and radio-based STA limit, Support Layer 2 user isolation, Support SSID hiding, Up to 8 SSIDs
Roaming	Support Layer 2 and Layer 3 roaming
Security	Support PSK authentication, Support static blacklist and whitelist, Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing	Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance	Support local management with web, Support local or remote management with Ruijie Cloud app, Support remote management with Ruijie Cloud platform, Support unified networking of all network equipment
Platform management features	Automatic RF adjustment via the platform, Unified configuration via the platform, Unified monitoring via the platform
