Ruijie Reyee RG-EST330F-P, 3 km, 13 dBi Wireless Bridge

$180.40 inc GST

(0 customer reviews)

Ruijie Reyee RG-EST330F-P is an 802.11ac wireless bridge launched by Ruijie Reyee. It provides surveillance video backhaul function.

3 x FE Ports, including 2 x PoE Out Ports
Support 3 Power Supply Options: 12 V DC, Passive PoE, 802.3af/at
Support TDMA
Support SON

Availability: 353 in stock

Add To Wishlist

SKU: RG-EST330F-P Category: Reyee Wireless Bridge Tags: 3FE ports, 3Km, Cloud Managed, Including 2 POE-OUT ports, Wi-Fi 5; Wireless Bridge

Loading...

Key Specification

Model	RG-EST330F-P	Product Category	Wireless bridge
Wireless Standard	802.11ac, 5 GHz	Wireless Speed	Up to 867 Mbps
Radio Design	Dual-radio, 3 spatial streams: 2.4 GHz 1×1 SISO, 5 GHz 2×2 MIMO	Antenna	13 dBi directional antenna, 30 deg horizontal / 30 deg vertical orientation
Network Ports	3 x FE ports	PoE Out Ports	2 x PoE out ports
Power Supply	12 V DC, passive PoE, or 802.3af/at PoE	PoE In Ports	1 x PoE in port and 1 x PoE/PoE+ in port
Wireless Features	TDMA, SON, bridge speed test	Cloud Management	Ruijie Reyee app / cloud management
Typical Throughput	90 Mbps at 0.5 km, 80 Mbps at 1 km, 60 Mbps at 2 km, 40 Mbps at 3 km (HT40)	Application	PTP / PTMP outdoor wireless bridge links for surveillance and remote sites
Dimensions	103 mm x 53.4 mm x 199 mm (excluding mounting bracket)	IP Rating	IP55
Operating Temperature	-30 deg C to +55 deg C (-22 deg F to +131 deg F)	Operating Humidity	5% RH to 95% RH, non-condensing
MTBF	400,000 hours	Warranty	3 years

Feature Images

Official product promotional feature images.

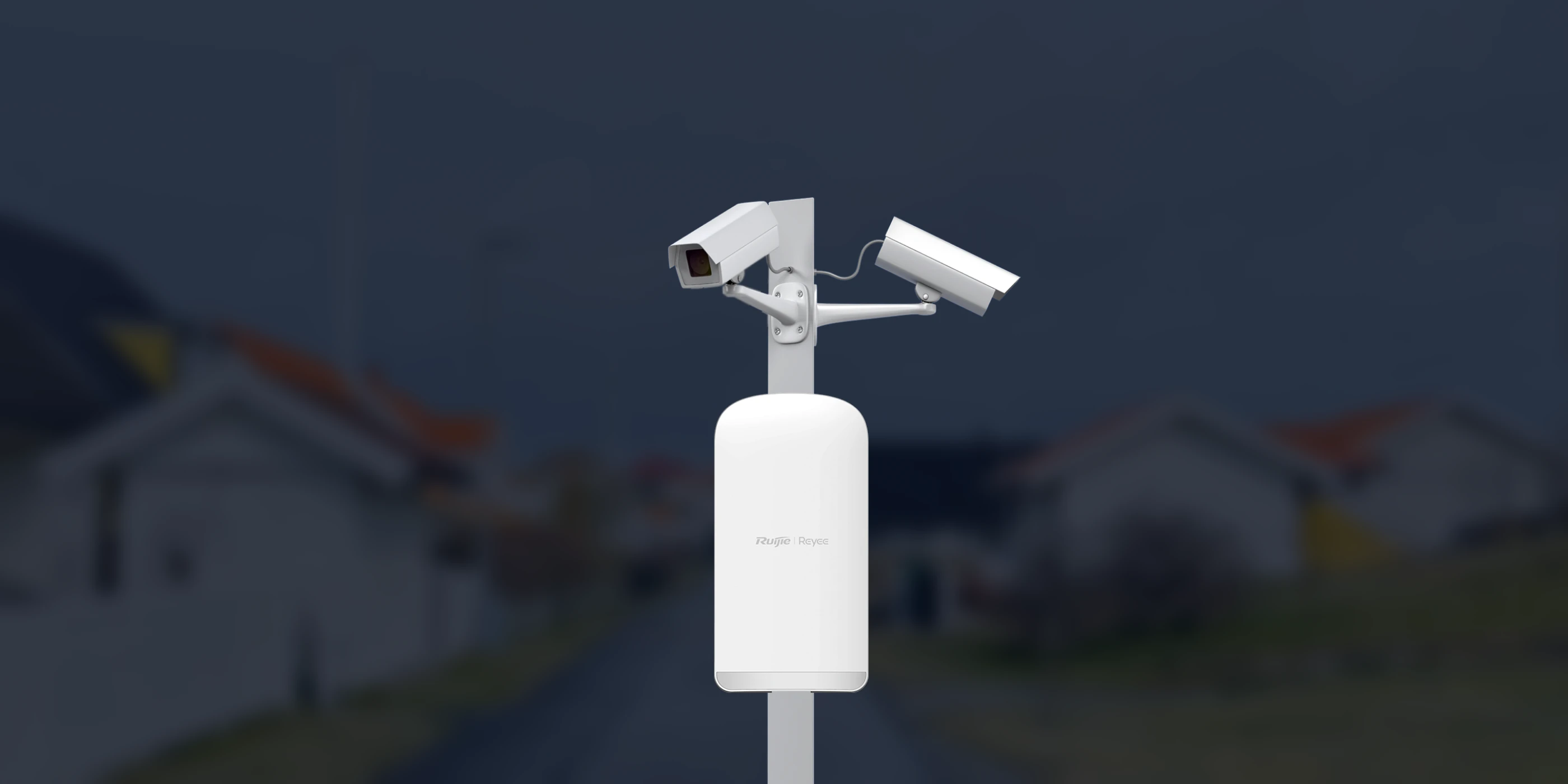

RG-EST330F-P feature image 1

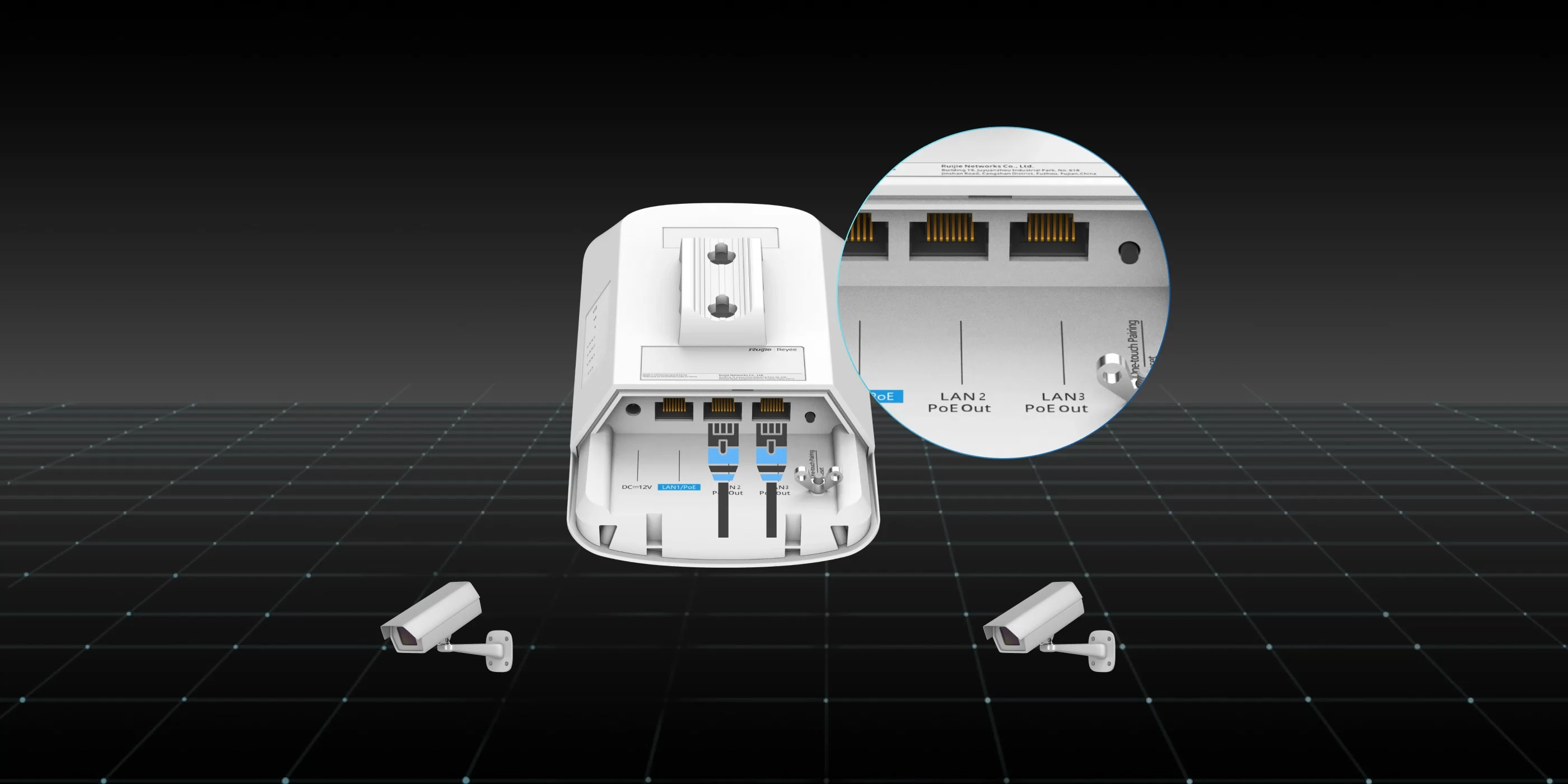

RG-EST330F-P feature image 2

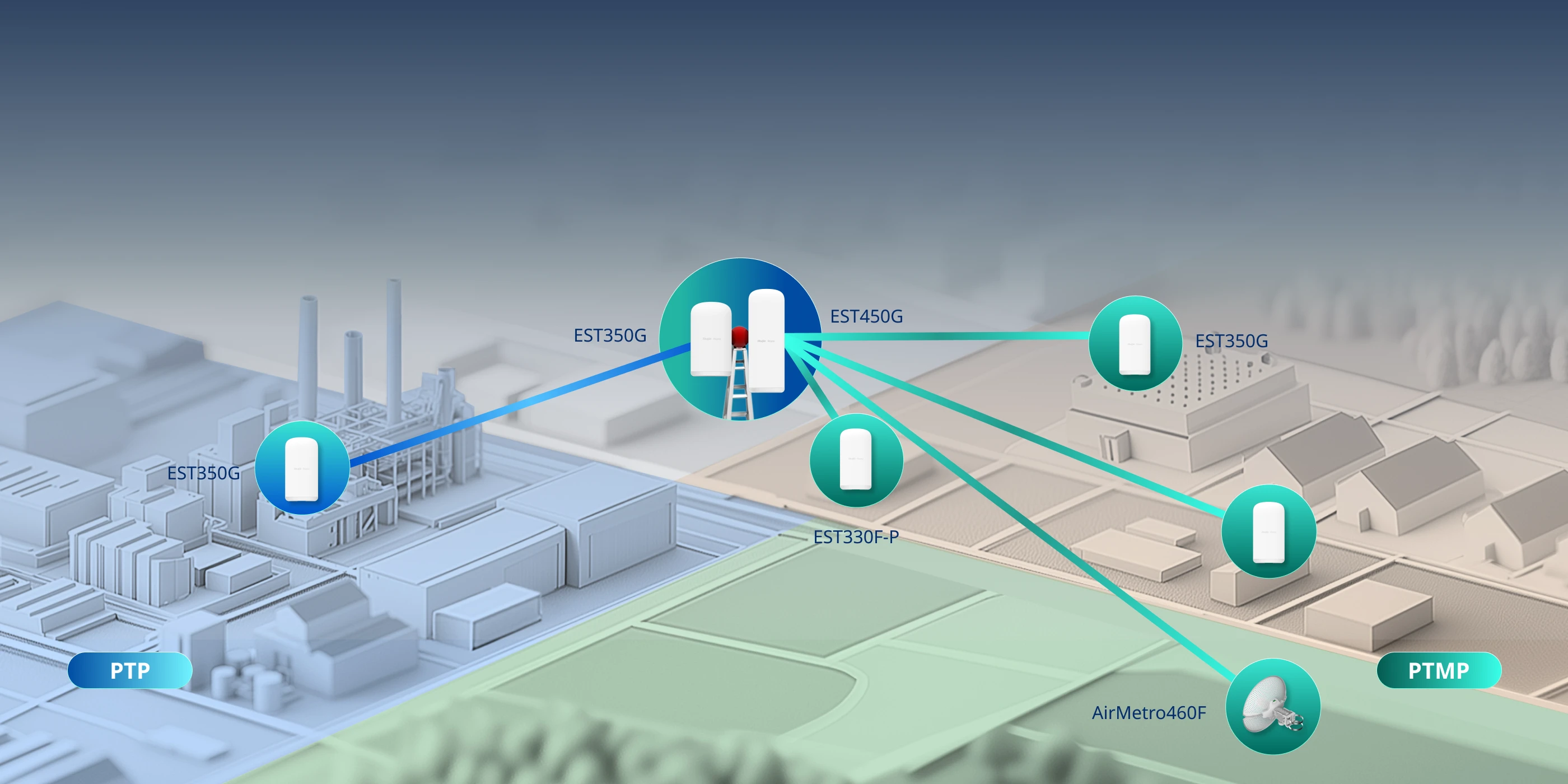

RG-EST330F-P feature image 3

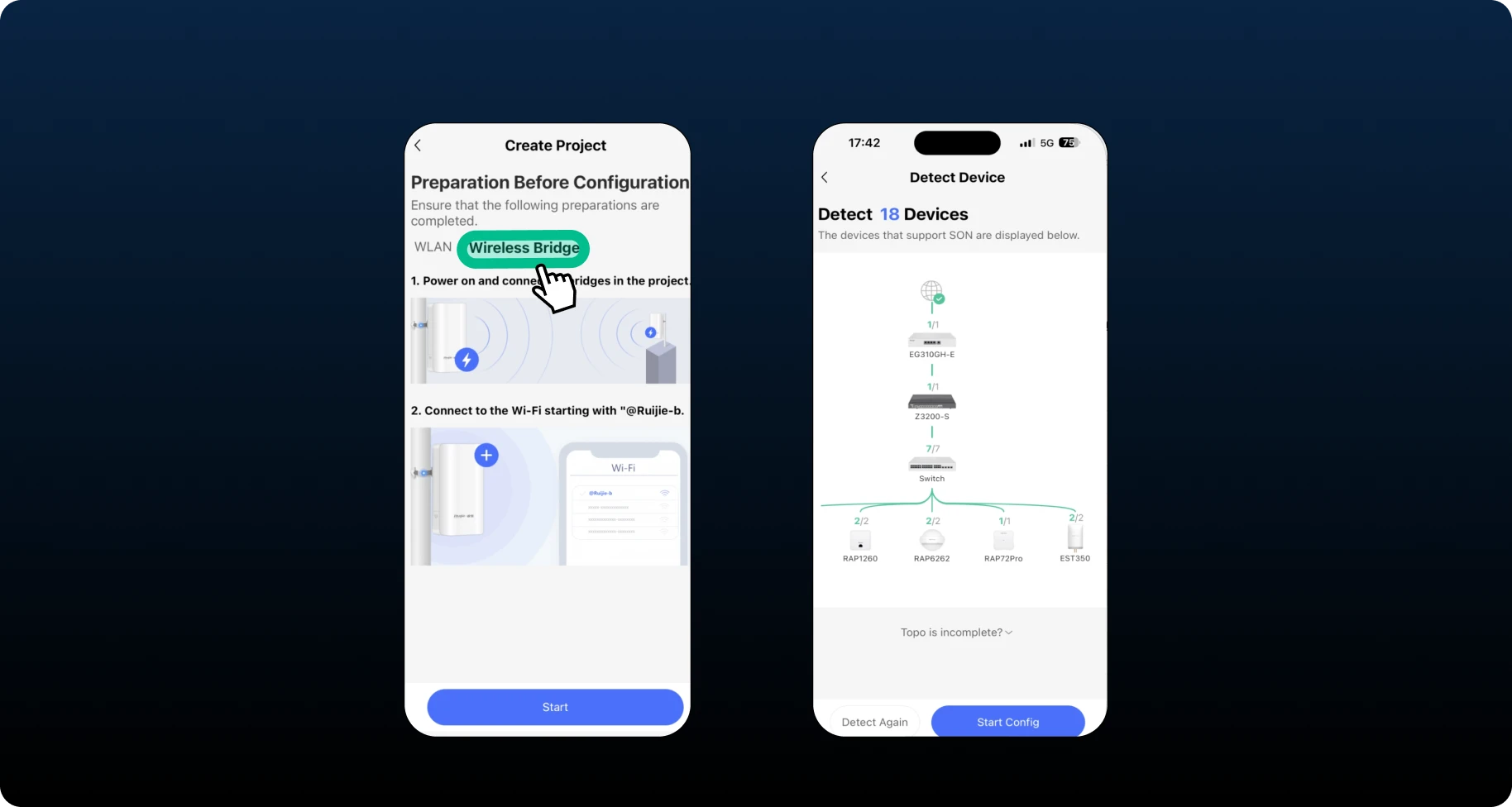

RG-EST330F-P feature image 4

Product Video

Open box video for Ruijie Reyee RG-EST330F-P, 3 km, 13 dBi Wireless Bridge.

RG-EST330F-P Open Box Video

Deployment Support

Clear product positioning with Star-Link Group support separated from manufacturer product features.

Cloud Managed

Suitable for business networking projects where easier deployment and remote management are important.

Project Ready

Prepared for installers, integrators and trade customers comparing hardware across network projects.

Project Ready

Prepared for clean product selection, deployment planning and technical comparison.

Available project support from Star-Link Group:

Free pre-configuration for your first project, and for projects involving five or more devices. Free consultation and after-sales support.

Note: Pre-configuration service is provided by Star-Link Group and is not a built-in feature of this product. Please email support@star-link.net.au if you would like to discuss your setup.

Weight	0.91 kg
Dimensions	56 × 28 × 11 cm
Radio	Dual-stream dual-band
Protocol	Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands	802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz, 802.11b/g/n: 2.4G ~ 2.4835GHz
Antenna	Array antennas (2.4G: 2dBi, 5G: 2dBi)
Spatial Streams	2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput	1.267Gbp per AP, Up to 400Mbps at 2.4G, Up to 867Mbps at 5G
Modulation	DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps, MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM, Modulation OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
Receiver Sensitivity	11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps), 11ac HT20: -83dBm (MCS0), -57dBm (MCS9), 11ac HT40: -79dBm (MCS0), -57dBm (MCS9), 11ac HT80: -76dBm (MCS0), -51dBm (MCS9), 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps), 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@ MCS15
Maximum Transmit Power	2.4~2.4835GHz: ≤20dBm (EIRP), 5.150~5.350GHz: ≤20dBm (EIRP), 5.725~5.850GHz: ≤20dBm (EIRP)
Adjustable Power	1dBm
Dimensions	194mm×194mm×35mm (excluding mounting kits)
Weight	0.45kg (excluding mounting kits)
Service Ports	2 10/100Base-T Ethernet ports, PoE/LAN1 port supports PoE, Service Ports 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE
Management Port	NA
LED Indicator	Single indicator (green light)
Power Supply	Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE
Power Consumption	≤ 12.95W
Environment	Operating humidity: 5%~95% (non-condensing), Operating temperature: 0°C~40°C, Storage humidity: 5%~95% (non-condensing), Storage temperature: -40°C~70°C
Installation	Wall-mount, ceiling-mount
Safety Standard	GB4943, IEC 60950-1
EMC Standard	GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
Vibration Standard	IEC61373
Radio Standard	SRRC certification, EN300 328, EN301 893
MTBF	>400000H
Operating Mode	AP mode and routing mode
WLAN	Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID, Maximum number of clients: 110, Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz), SSID-based and radio-based STA limit, Support Layer 2 user isolation, Support SSID hiding, Up to 8 SSIDs
Roaming	Support Layer 2 and Layer 3 roaming
Security	Support PSK authentication, Support static blacklist and whitelist, Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing	Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance	Support local management with web, Support local or remote management with Ruijie Cloud app, Support remote management with Ruijie Cloud platform, Support unified networking of all network equipment
Platform management features	Automatic RF adjustment via the platform, Unified configuration via the platform, Unified monitoring via the platform
