Key Specification
| Product Category | Layer 2 | Warranty | 3 years |
|---|---|---|---|
| Total number of RJ45 ports | 10 | Total number of optical ports | 1 |
| Number of 1GE SFP ports | 1 | Number of 10/100/1000BASE-T ports | 10 |
| Number of PoE Out ports | 8 | Number of PoE/PoE+ Out ports | 8 |
| PoE budget | 120 W | PoE power pins | 1–2 (+), 3–6 (-) |
| Forwarding rate | 16.36 Mpps | Switching capacity | 22 Gbps(bit/s) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | PoE watchdog | Yes |
| Port isolation | Yes |
Product Resources
Feature Images
Product Video
Open box video for Ruijie Reyee RG-ES211GS-P 10-Port Gigabit Smart Cloud-Managed PoE Switch with 1-Port SFP will be added once available.
Deployment Support
Optional setup guidance and after-sales support available from Star-Link Group.
120W PoE Budget
Supports higher PoE load planning for multi-camera and edge-device projects.

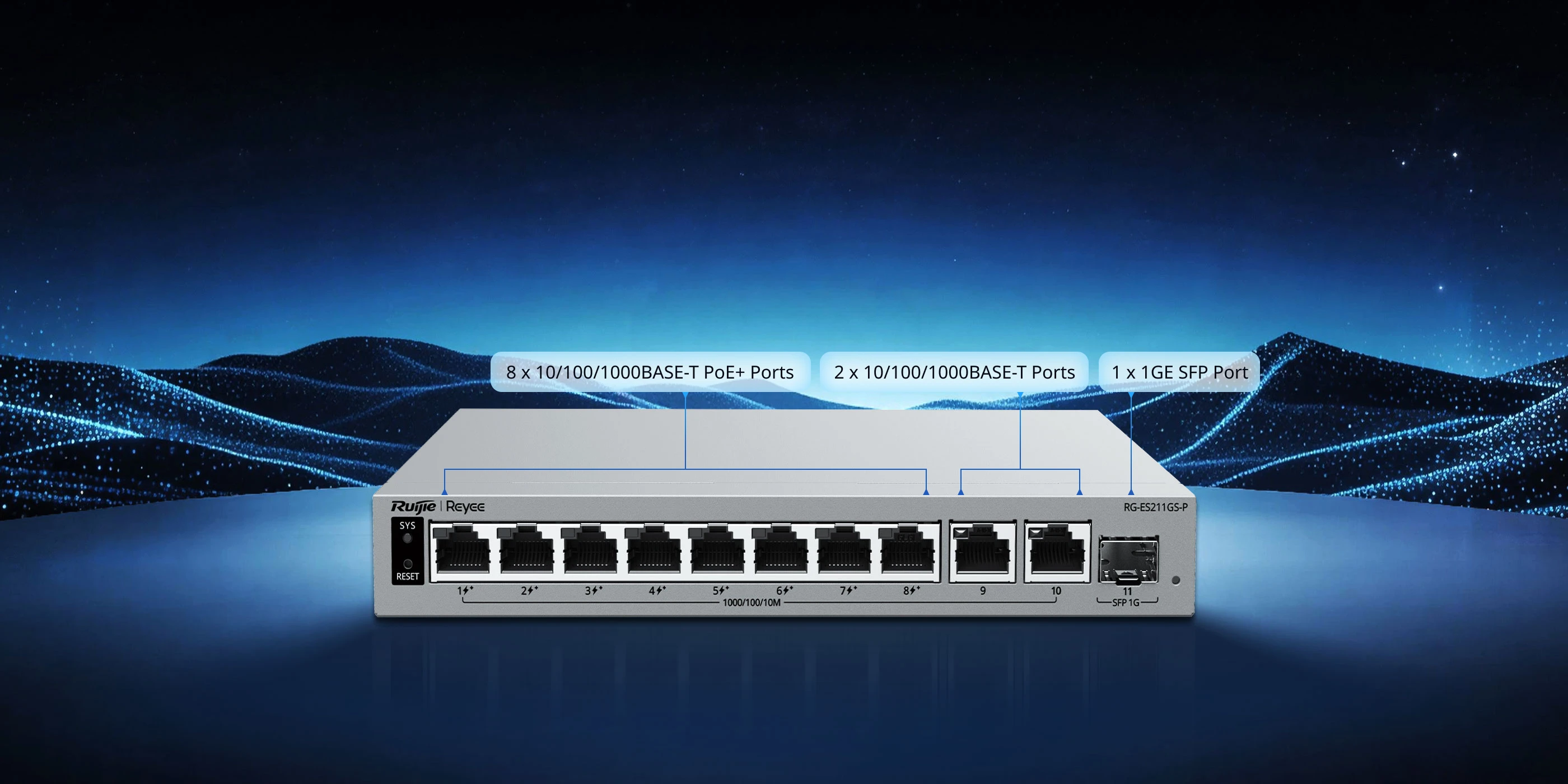

SFP Uplink
Includes a 1GE SFP port for fibre uplink or switch-to-network expansion.
CCTV Reliability

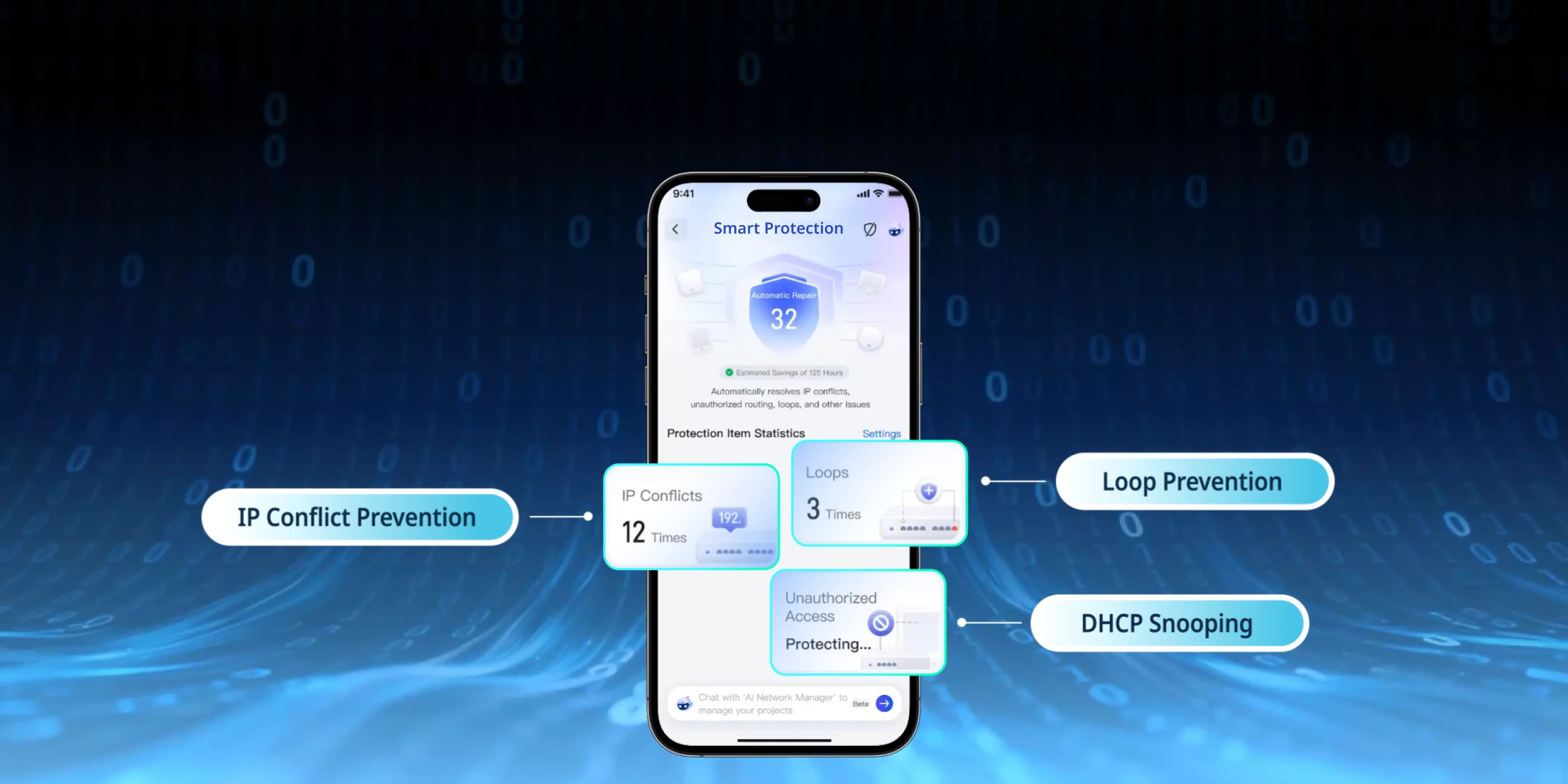

PoE watchdog, perpetual PoE and smart protection help keep camera networks stable.
Free pre-configuration for your first project, and for projects involving five or more devices.
Free consultation and after-sales support.
Note: Setup guidance and pre-configuration service are provided by Star-Link Group and are not built-in product features. Please email support@star-link.net.au if you would like to discuss your setup.
